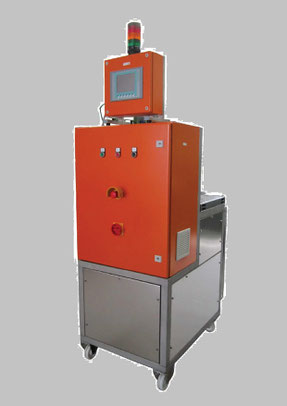

Type: DS-F / 5-100
This compact melting and dosing plant is designed and installed especially for the continuous dosing of several hot melt at alternating sites (process machines).
The hot melt granulates is melted continuously in the melting hopper and is dosed continuously oriented at the application quantity and the capacity from the process machine.
- Wax, paraffin
- Chemical products
- Voltage: 230 / 400 VAC
- Drive power: 0,25 - 0,75 kW
- Heat Power: up to 0,5 kW
- Compressed air: up to 6.0 bar
- Volumetric dosing
- Variable dosing range: 5,0 - 150 ml/min
- Dosing accuracy: 0,5%
- Temperature of products: up to 200°C
- Volume melting tank: 5 - 20 l
- Simple handling over operator-panel
